iMON ODM/OEM LCD Drawing

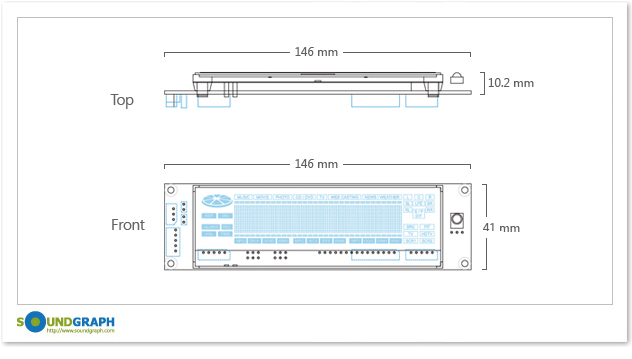

<Type A>

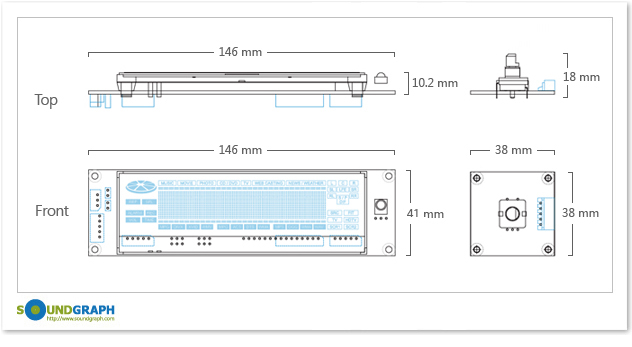

<Type B (Volume)>

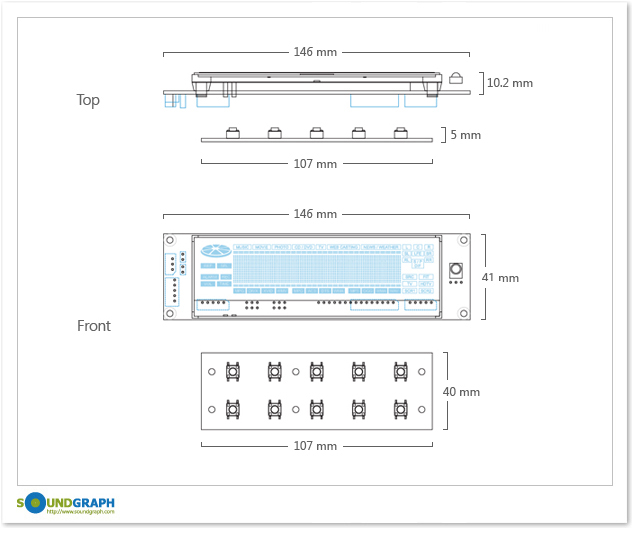

<Type B (Button)>

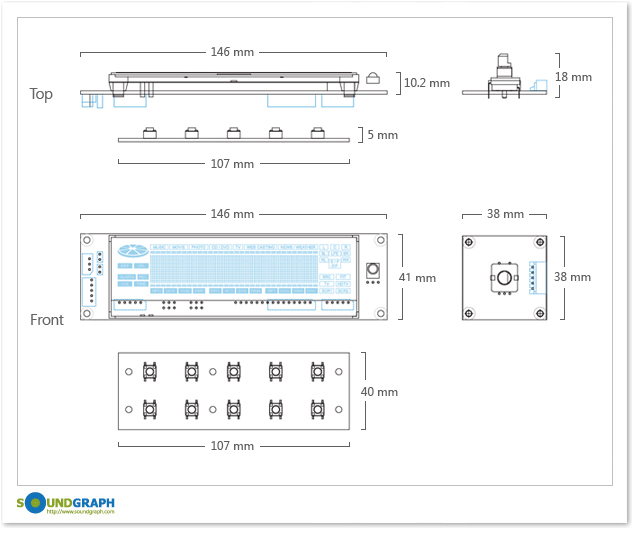

<Type C>

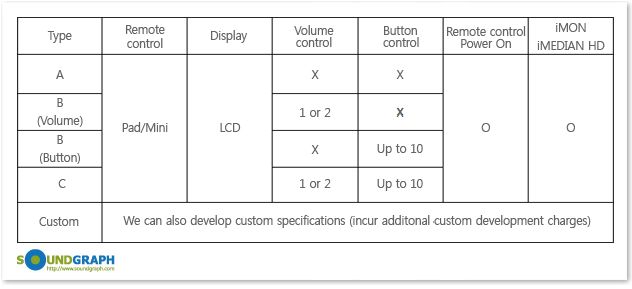

iMON ODM/OEM LCD Specification Comparison

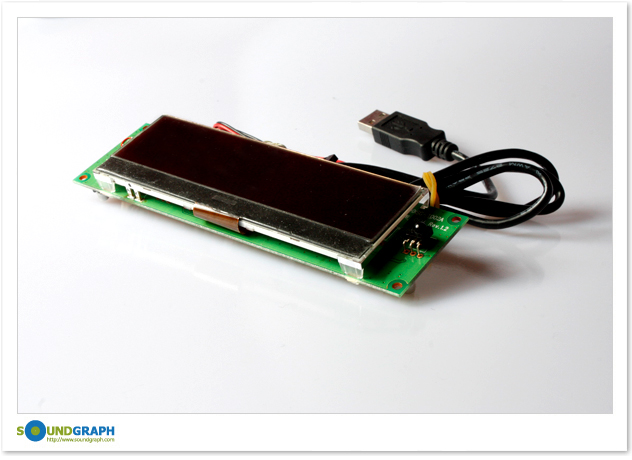

iMON ODM/OEM LCD Board

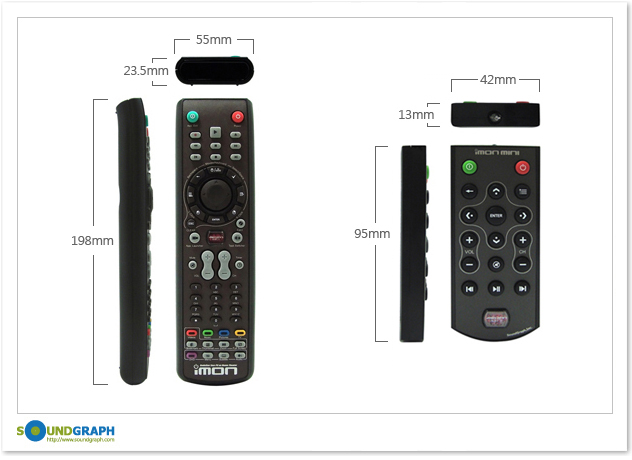

iMON ODM/OEM LCD Remote Control

Technical Specifications

1. Remote Signaling
38KHz infrared signals

2. Maximum Receiving Distance
15 meters

3. Wireless Reception Angle
AFFS 45º

4. Interface
More than USB 1.1

5. Color
Black, Silver

6. Supported Operating Systems
Windows 7 (32/64 bit), VISTA (32/64 bit) and XP (32/64 bit)

7. Supported Languages
Chinese (Traditional), Chinese (Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Portuguese (Brazilian), Russian, Slovak , Spanish and Thai

8. Supported Applications:
iMEDIAN HD, Windows Media Player, iTunes, Winamp, Real Player, Realone Player, QuickTime, MusicMatch Jukebox, Sonique, GOM Player, KMP, Jet Audio, Power Cinema, Win DVD, Power DVD and Windows Media Center Edition

9. Hardware Certification
CE, FCC, MIC, RoHS, WEEE

10. Driver Certification
WHQL

11. The Current Version
7.77.1022 (Oct. 22, 2009)

Oct 23, 2009
SoundGraph, Inc.
